Lensagon TC5M-40-65IC

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 4x, WD 65mm, F# 12.5, NA 0.6, DOF 31.3um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 10086 Category:

Product Description

The Object Side Telecentric Lens TC5M-40-65IC is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 4 x
Working Distance (WD) 65 mm
Depth of Field (DOF) 31.3 μm @ 20 μm
Resolution (Object Side) 2.09 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Working F-Number 12.5
Numerical Aperture (NA) 0.6
Field of View (FOV) 2.2mm x 1.65mm @ 2/3″
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

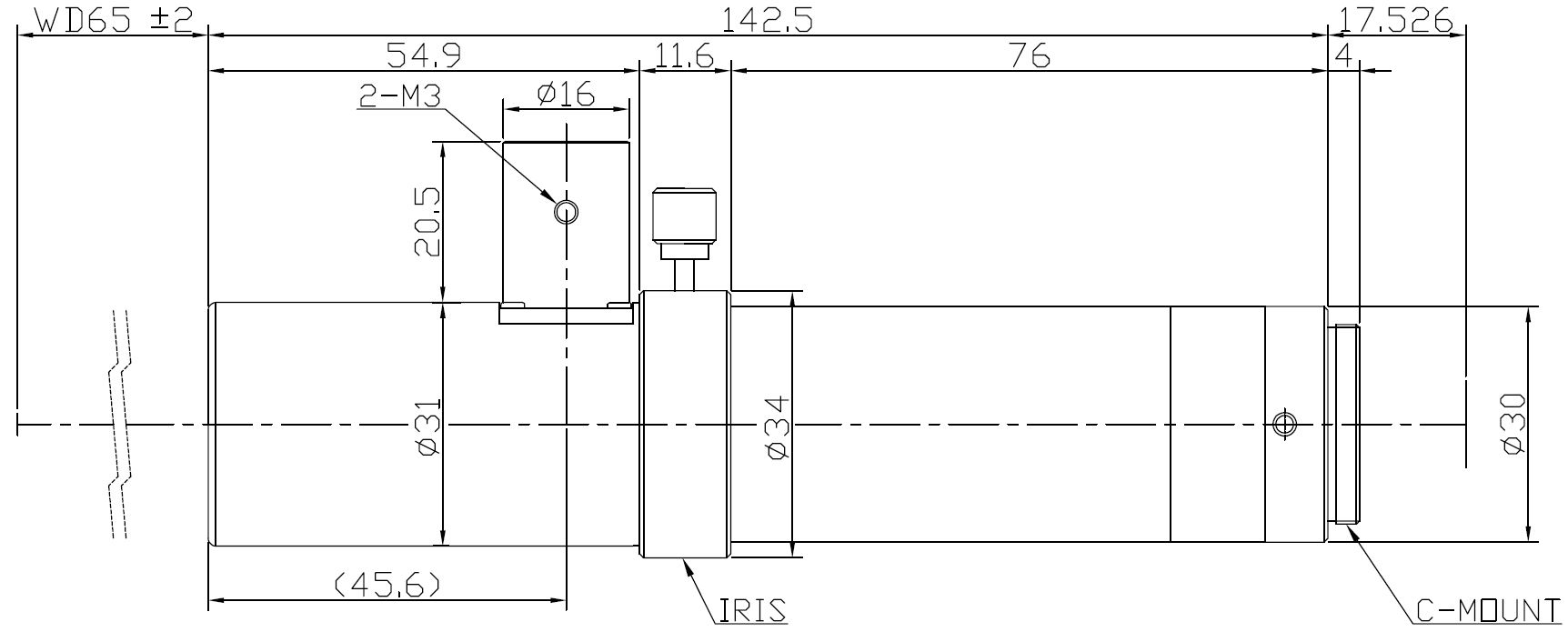

Drawing
