Lensagon TCHR-15-65

High Res Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1.5x, WD 65mm, F# 10.7, NA 0.07, DOF 380um, Opt.Dist. 0.07

 Compare
SKU: 10516 Category:

Product Description

The Object Side Telecentric Lens TCHR-15-65 is suitable for sensors with an image format of 1/2 inch.

Magnification 1.5 x
Working Distance (WD) 65 mm
Depth of Field (DOF) 380 μm @ 40 μm
Resolution (Object Side) 4.8 μm
Image Format (max.) 1/2 inch
Working F-Number 10.7
Numerical Aperture (NA) 0.07
Field of View (FOV) 4.3mm x 3.2mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.022 °
Optical Distortion (max.) 0.07 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

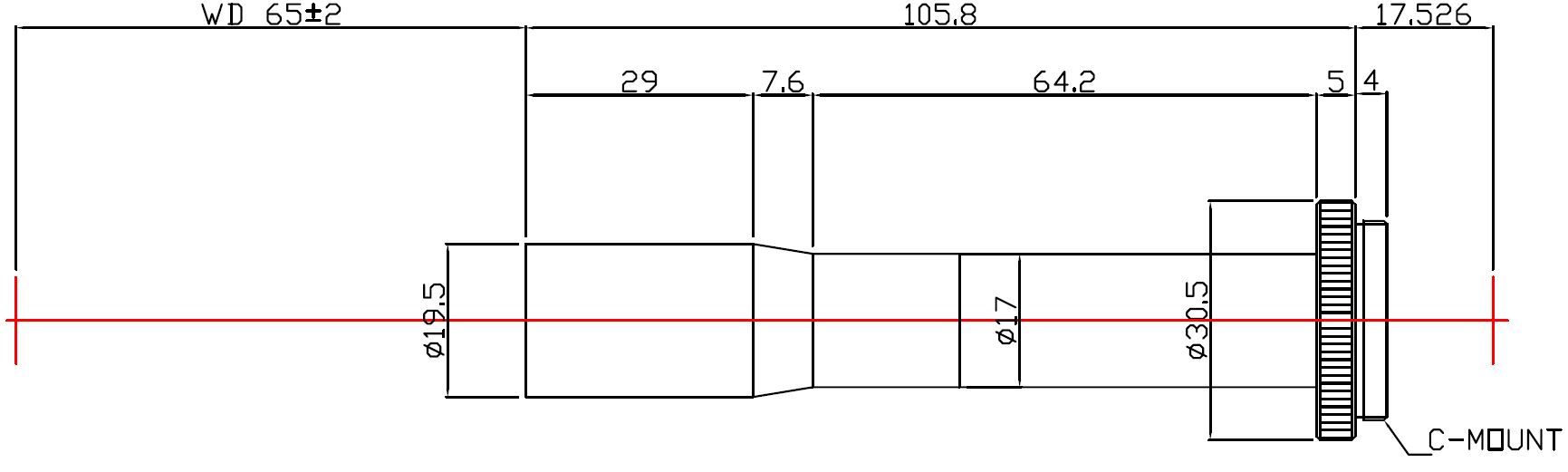

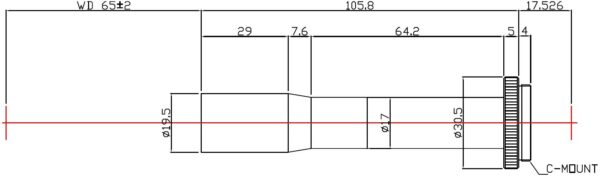

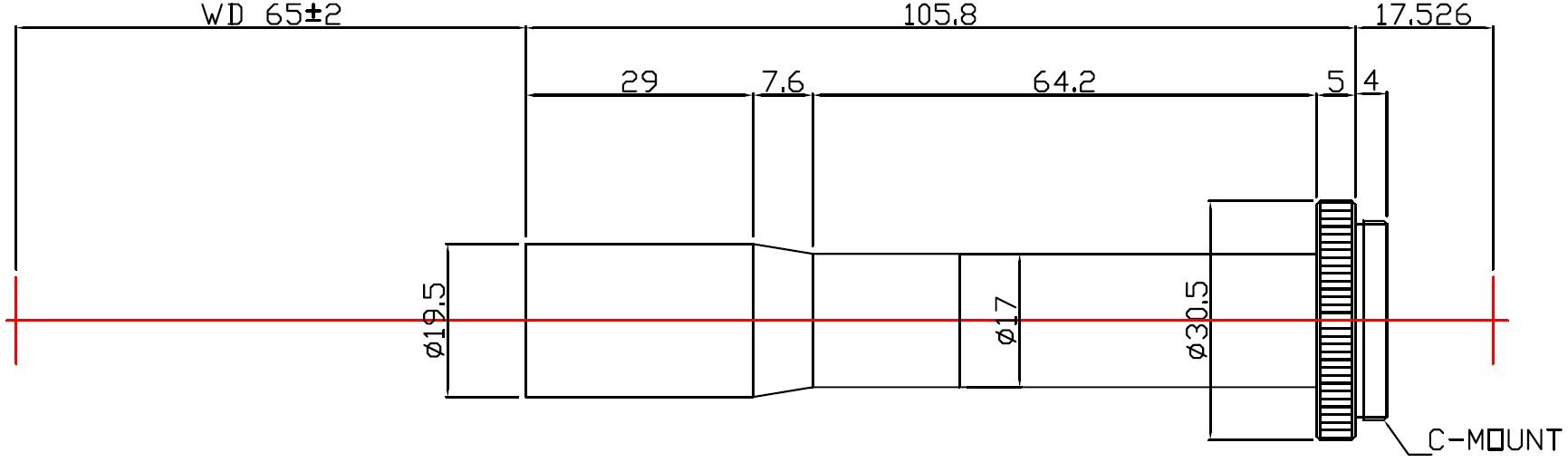

Drawing
