Lensagon TCHR-15-110-S12C

High Res Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1.5x, WD 110mm, F# 12.5, NA 0.06, DOF 444um, Opt.Dist. 0.06, Coaxial Version

 Compare
SKU: 10530 Category:

Product Description

The Object Side Telecentric Lens TCHR-15-110-S12C is suitable for sensors with an image format of 1/2 inch.

Magnification 1.5 x
Working Distance (WD) 110 mm
Depth of Field (DOF) 444 μm @ 40 μm
Resolution (Object Side) 5.6 μm
Image Format (max.) 1/2 inch
Working F-Number 12.5
Numerical Aperture (NA) 0.06
Field of View (FOV) 4.3mm x 3.2mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.06 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

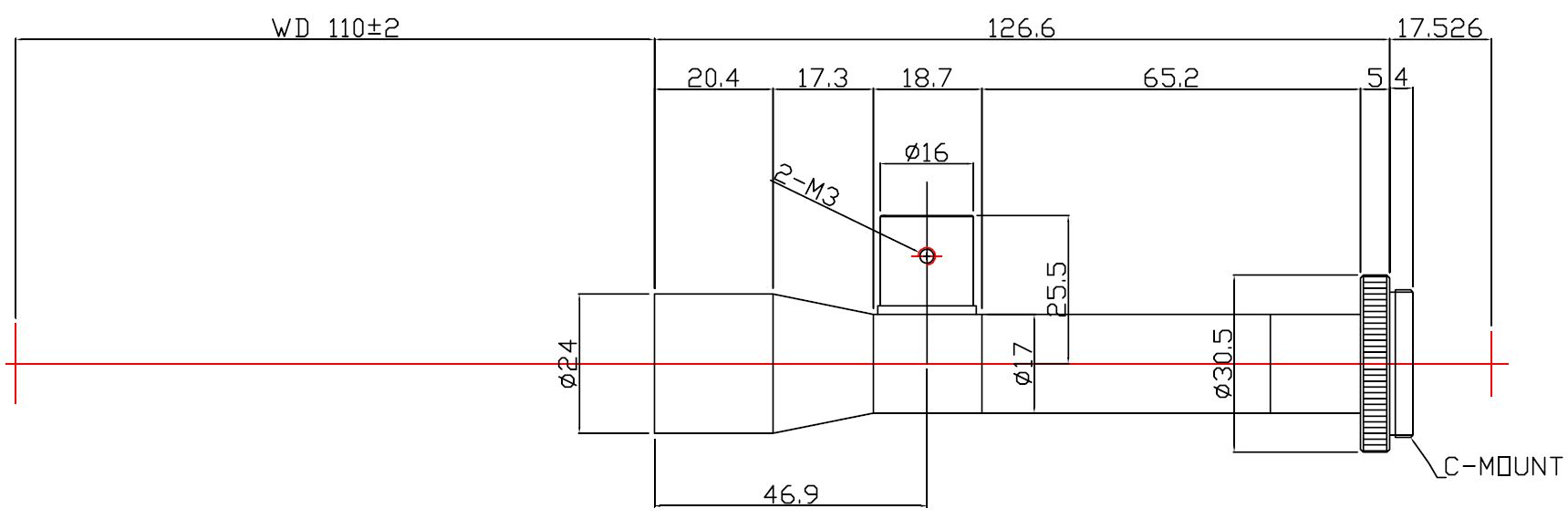

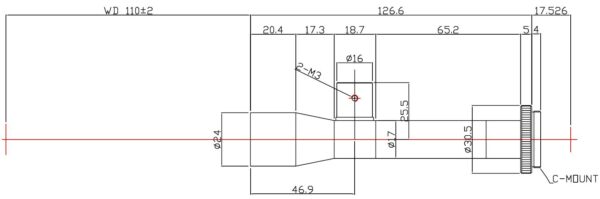

Drawing
