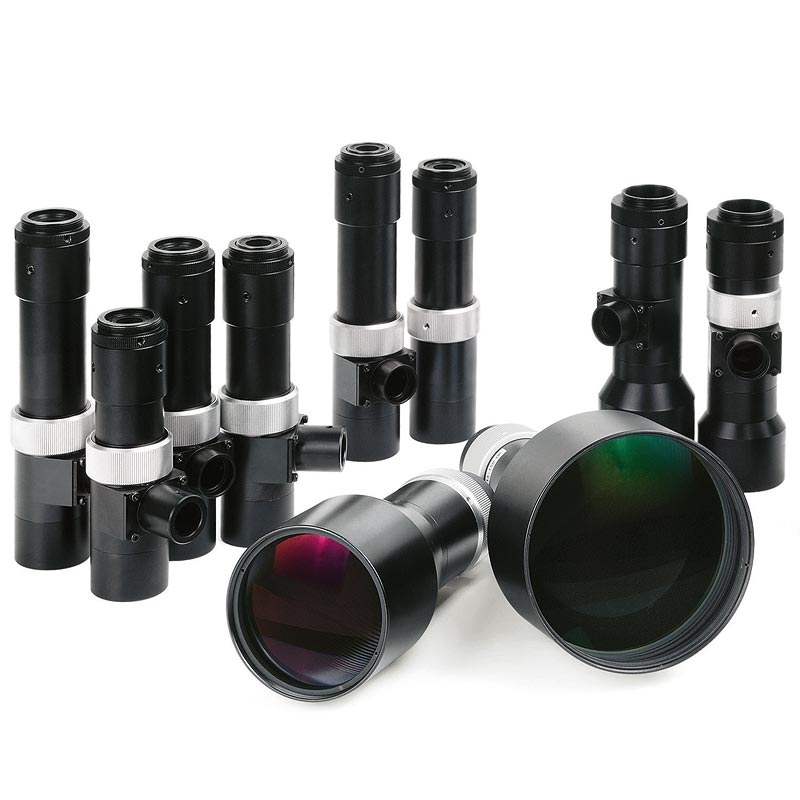

Lensagon TC5M-30-65I

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 3x, WD 65mm, F# 9.62, NA 0.156, DOF 42.7um, Opt.Dist. 0.05

 Compare
SKU: 00738 Category:

Product Description

The Object Side Telecentric Lens TC5M-30-65I is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 3.00 x
Working Distance (WD) 65.00 mm
Depth of Field (DOF) 42.70 μm @ 20.00 μm
Resolution (Object Side) 2.15 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 5.00 MP
Working F-Number 9.62
Numerical Aperture (NA) 0.156
Field of View (FOV) 2.8mm x 2.4mm @2/3″
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.
