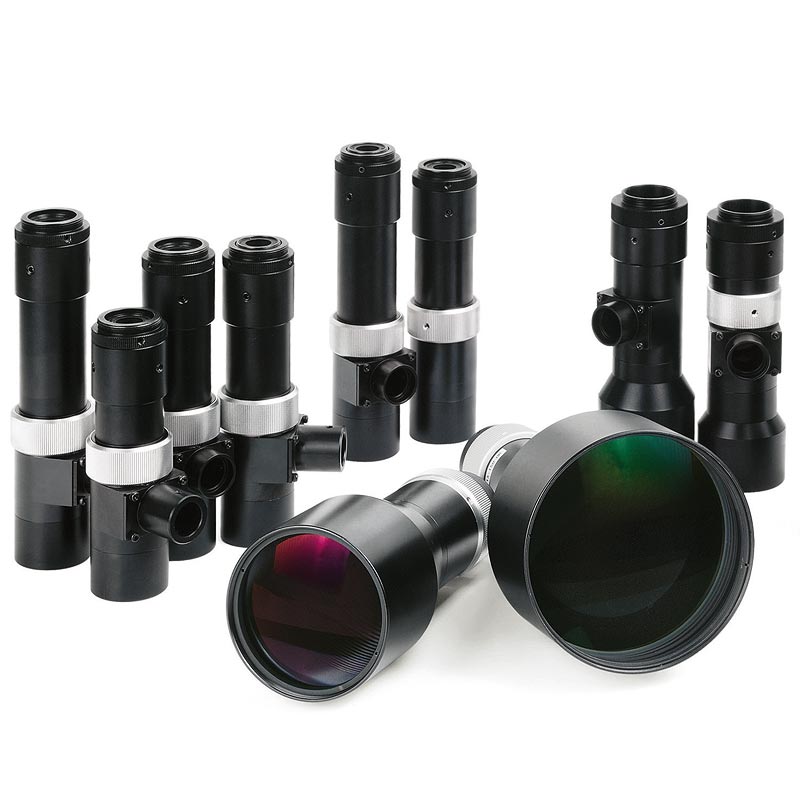

Lensagon TC5M-20-65

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 2x, WD 65mm, F# 8.3, NA 0.12, DOF 83um, Opt.Dist. 0.02

 Compare
SKU: 00710 Category:

Product Description

The Object Side Telecentric Lens TC5M-20-65 is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 2 x
Working Distance (WD) 65 mm
Depth of Field (DOF) 83 μm @ 20 μm
Resolution (Object Side) 2.8 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Working F-Number 8.3
Numerical Aperture (NA) 0.12
Field of View (FOV) 4.2mm x 3.6mm @ 2/3″
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.02 %
Mount C-Mount *

* Other mounts are available on request.
