Lensagon TC5M-09-110

Lensagon TC5M-09-110

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.9x, WD 110mm, F# 6, NA 0.075, DOF 296um, Opt.Dist. 0.01

 Compare
SKU: 10504 Category:

Product Description

The Object Side Telecentric Lens TC5M-09-110 is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.9 x
Mount C-Mount
Working F-Number 6
Working Distance (WD) 110 mm
Depth of Field (DOF) 296 μm
Resolution (Object Side) 4.47 μm
Numerical Aperture (NA) 0.075
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Field of View (FOV) 9.76mm x 7.3mm @5M CCD
Telecentric Type Object Side
Telecentricity 0.025 °
Optical Distortion (max.) 0.01 %
Special Feature Super High Res
pdf

Additional Information

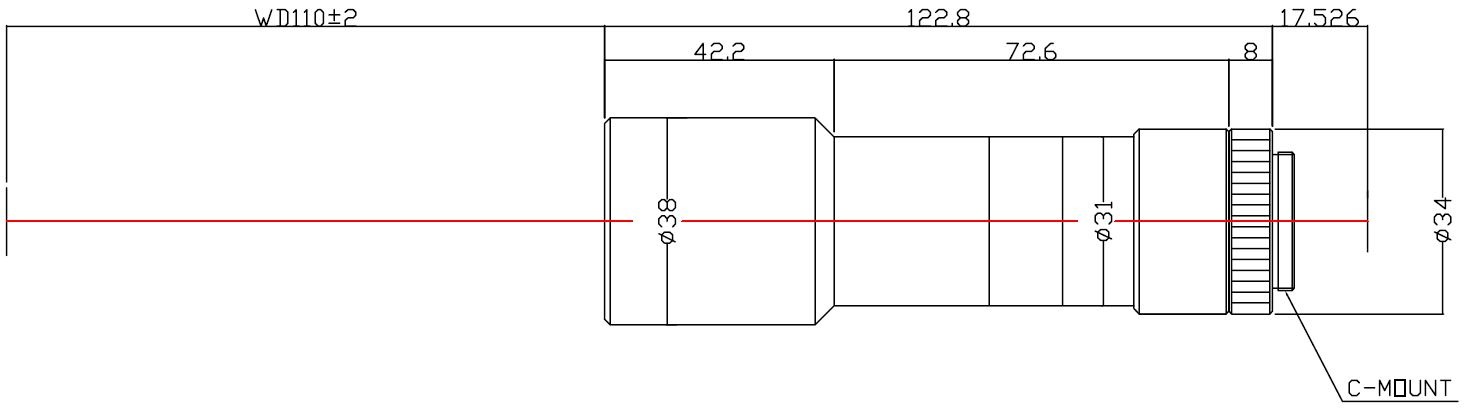

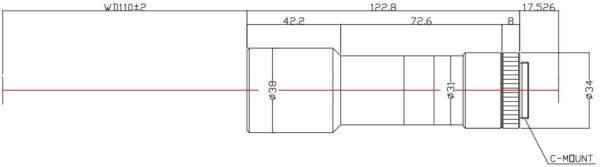

Technical Drawing:

Drawing
