Lensagon TC4MHR-015-255I

High Res Object Side Telecentric Lens for 1 inch sensor, Magnification: 0.15x, WD 255mm, F# 7, NA 0.0107, DOF 13700um, Opt.Dist. 0.01

 Compare
SKU: 10736 Category:

Product Description

The Object Side Telecentric Lens TC4MHR-015-255I is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.15 x
Working Distance (WD) 255 mm
Depth of Field (DOF) 13.7 mm @ 22 μm
Resolution (Object Side) 31.4 μm
Image Format (max.) 1 inch
Megapixel (max.) 4 MP
Working F-Number 7
Numerical Aperture (NA) 0.0107
Field of View (FOV) 75.09mm x 75.09mm
Telecentric Type Object Side
Telecentricity 0.023 °
Optical Distortion (max.) 0.01 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

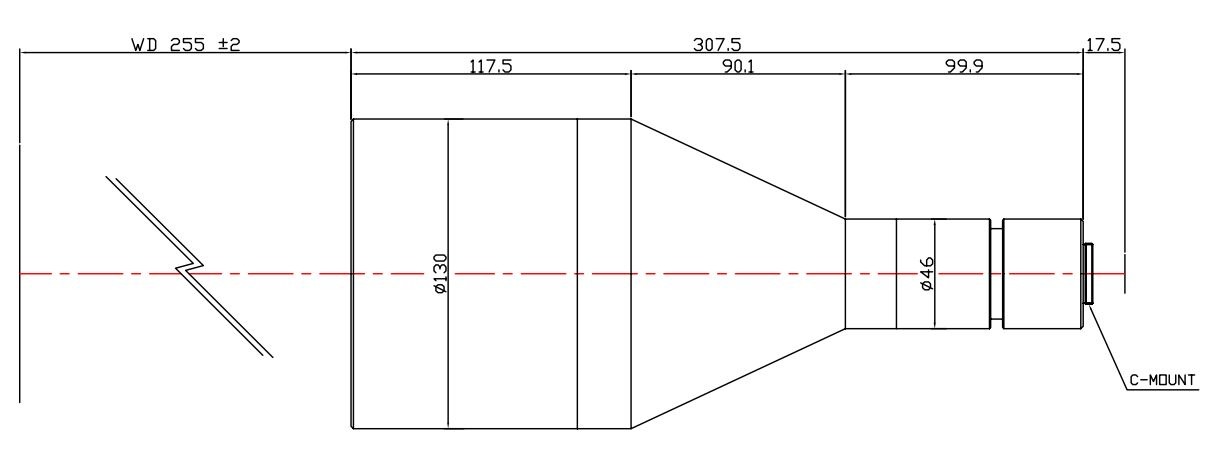

Drawing
