Lensagon TC10M-10-65I

Lensagon TC10M-10-65I

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 1x, WD 65mm, F# 4.5, NA 0.11, DOF 360um, Opt.Dist. 0.03

 Compare
SKU: 10898 Category:

Product Description

The Object Side Telecentric Lens TC10M-10-65I is suitable for sensors up to 10 megapixel and with an image format of 2/3 inch.

Magnification 1 x
Mount C-Mount *
Working F-Number 4.5
Working Distance (WD) 65 mm
Depth of Field (DOF) 360 μm
Resolution (Object Side) 3.05 μm
Numerical Aperture (NA) 0.11
Image Format (max.) 2/3 inch
Megapixel (max.) 10 MP
Field of View (FOV) 8,8×6,6
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.03 %
Special Feature Super High Res

* Other mounts are available on request.

pdf

Additional Information

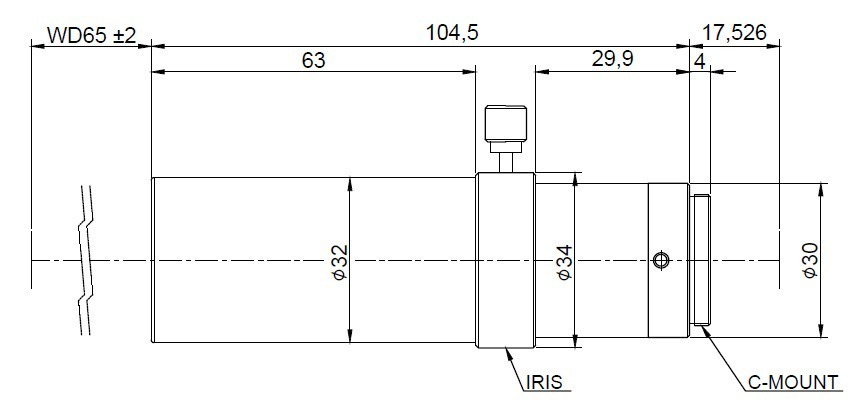

Drawing
