Lensagon CMFA20M1228S11

20 Megapixel C-Mount lens for 1.1 inch sensors, F2.8, f=12mm

 Compare
SKU: 11458 Category:

Product Description

The C-Mount lens Lensagon CMFA20M1228S11 is suitable for current sensors up to 20 megapixel with an image format of 1.1 inch.

Mount C-Mount
Sensor 1.1 inch
Focal Length 12 mm
Aperture (f#) 2.8
MOD 0.1 m
Back Focal Length 10.63
Angle of View (D) 66.9° / H: 56° / V: 43.3°
Megapixel (max.) 20 MP
Optical Distortion -1.05 %
Weight 130 g
Iris manual-lock
Focus manual-lock
Chief ray angle 14.5 °
Typ Standard
pdf

Additional Information

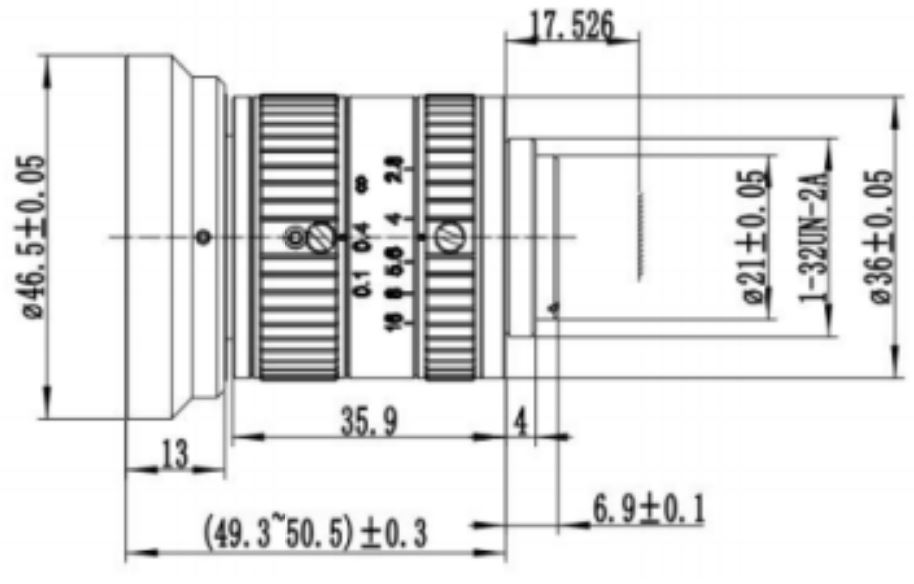

Drawing
