CK5M1620S23

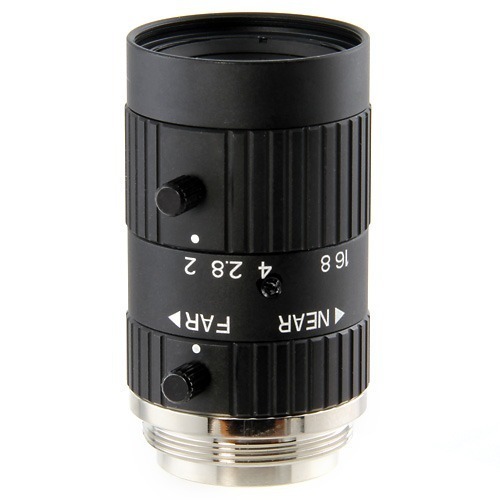

Lensagon CK5M1620S23

5 Megapixel C-Mount lens for 2/3 inch sensors, F2, f=16mm

 Compare
SKU: 10625 Category:

Product Description

The C-Mount lens Lensagon CK5M1620S23 is suitable for common sensors up to 5 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 16 mm
Aperture (f#) 2
MOD 0.2 m
Angle of View (D) 37.27°
Angle of View (H) 30.25°
Angle of View (V) 22.87°
Megapixel 5 MP
IR Cut Filter No
TV Distortion 0.09
Weight 100 g
Iris manual-lock
Focus manual-lock
Filter Size M27 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
