Lensagon BM6018

Lensagon BM6018

1 Megapixel S-Mount lens for 1/3 inch sensors, F1.8, f=6mm

 Compare
SKU: 00013 Category:

Product Description

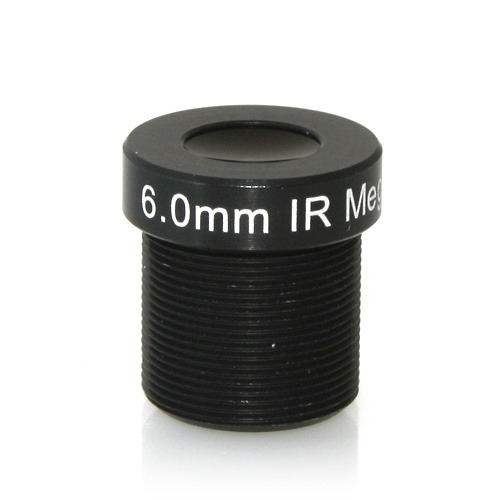

The S-Mount lens Lensagon BM6018 is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

MountS-Mount
Sensor1/3 inch
Focal Length6 mm
Aperture (f#)1.8
MOD0.3 m
Back Focal Length8.73
Angle of View (D)61°
Megapixel1 MP
IR CorrectionYes
Optical Distortion-17 %
Weight5 g
Irisfixed
Focusfixed
Chief ray angle10.9°
TypStandard
pdf

Additional Information

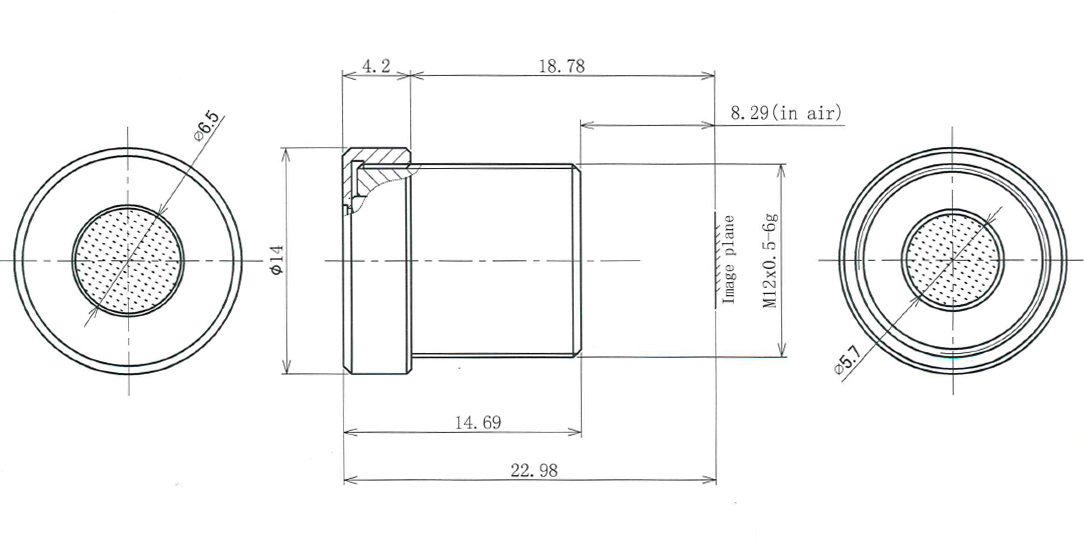

Technical Drawing:

Drawing

Technical Drawing:

Drawing
