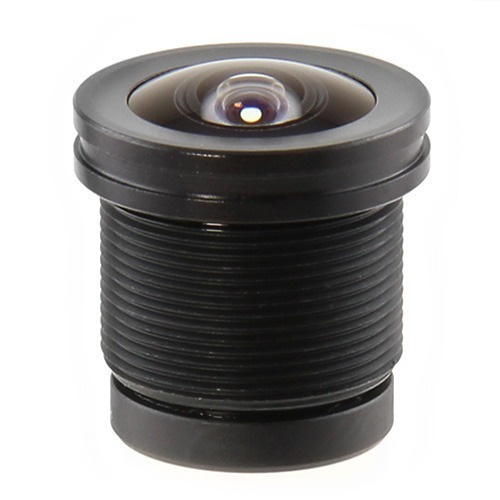

Lensagon BFM1524S125C

Lensagon BFM1524S125C

1.3 Megapixel Fisheye S-Mount lens for 1/2.5 inch sensors, F2.4, f=1.49mm

 Compare
SKU: 10822 Category:

Product Description

The Fisheye S-Mount lens Lensagon BFM1524S125C is suitable for common sensors up to 1.3 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 1.49 mm
Aperture (f#) 2.4
MOD 0.06 m
Back Focal Length 2.94
Angle of View (D) 183°
Megapixel 1.3 MP
IR Cut Filter Yes
Image Circle 4.72 mm
Iris fixed
Focus fixed
Typ Fisheye
pdf

Additional Information

Technical Drawing:

Drawing
