Lensagon BF2M2020S23

Lensagon BF2M2020S23

2 Megapixel Fisheye S-Mount lens for 2/3 inch sensors, F2, f=2mm

 Compare
SKU: 00120 Category:

Product Description

The Fisheye S-Mount lens Lensagon BF2M2020S23 is suitable for common sensors up to 2 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 2/3 inch
Focal Length 2 mm
Aperture (f#) 2
MOD 0.08 m
Back Focal Length 6.17
Angle of View (D) 195°
Megapixel 2 MP
IR Correction Yes
Image Circle 6.7 mm
Weight 20 g
Iris fixed
Focus fixed
Typ Fisheye
pdf

Additional Information

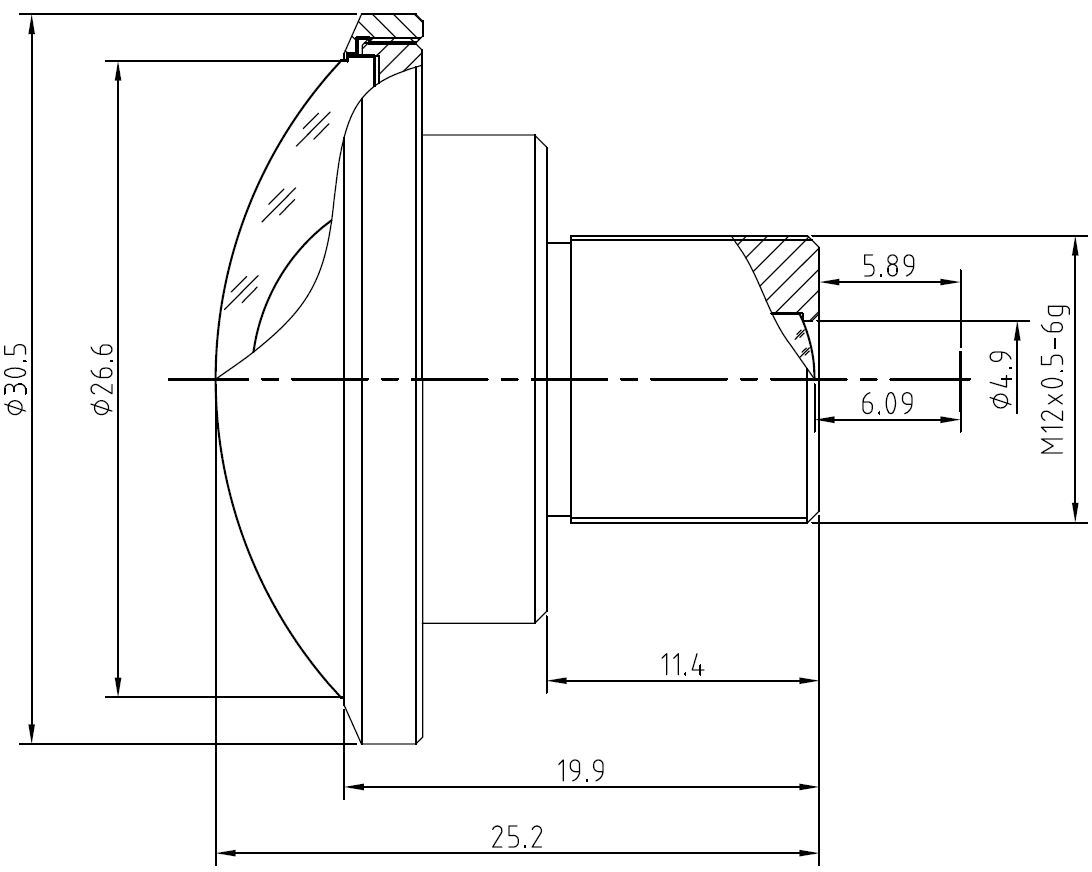

Technical Drawing:

Drawing
