Lensagon BF16M220D

Lensagon BF16M220D

16 Megapixel Fisheye S-Mount lens for 1/2.3 inch sensors, F2.5, f=1.2mm

 Compare
SKU: 00022 Category:

Product Description

The S-Mount lens Lensagon BF16M220D is suitable for current sensors up to 16 megapixel with an image format of 1/2.3 inch.

Mount S-Mount
Sensor 1/2.3 inch
Focal Length 1.2 mm
Aperture (f#) 2.5
Back Focal Length 2.75
Angle of View (D) 220°
Megapixel 16 MP
IR Cut Filter No
Image Circle 4.2 mm
Weight 25 g
Iris fixed
Focus fixed
Typ Fisheye
pdf

Additional Information

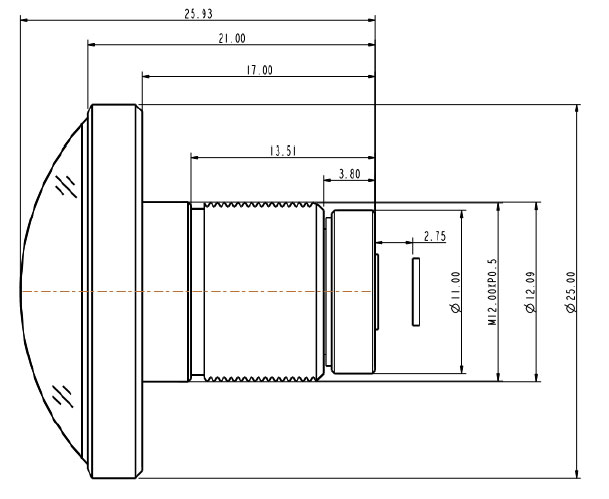

Technical Drawing:

Drawing
