Lensagon B5M6028S23ND

5.00 Megapixel S-Mount lens for 2/3 inch sensors, F2.80, f=6.00mm

 Compare
SKU: 11729 Category:

Product Description

The S-Mount lens Lensagon B5M6028S23ND is suitable for common sensors up to 5.00 megapixel with an image format of 2/3 inch.

Mount S-Mount
Sensor 2/3 inch
Focal Length 6.00 mm
Aperture (f#) 2.80
MOD 0.20 m
Back Focal Length 6.35
Angle of View (D) 83.80° / H: 67.25° / V: 50.50°
Megapixel (max.) 5.00 MP
IR Cut Filter No
TV Distortion -1.58
Image Circle 10.70 mm
Iris fixed
Focus manual
Chief ray angle 13.12 °
Typ Standard
pdf

Additional Information

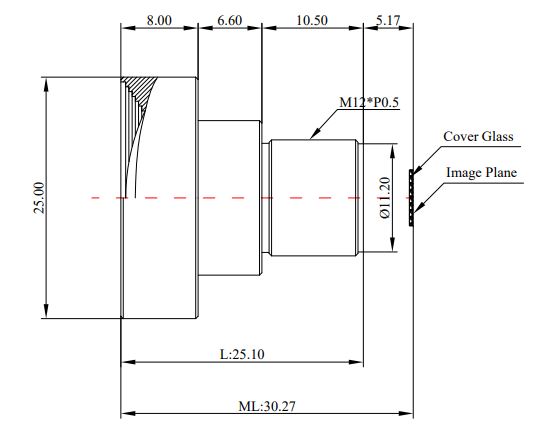

Drawing
