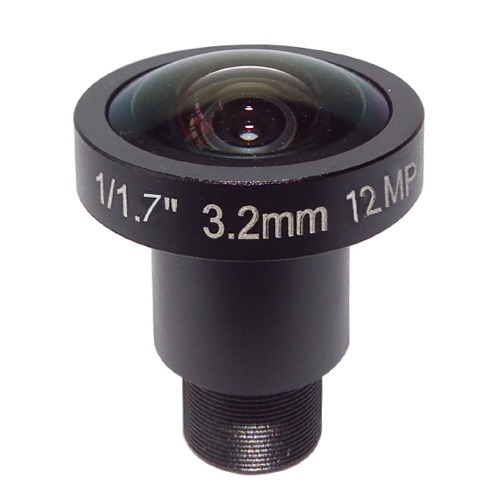

Lensagon B12M3220S117

12 Megapixel S-Mount lens for 1/1.7 inch sensors, F2, f=3.2mm

 Compare
SKU: 11231 Category:

Product Description

The S-Mount lens Lensagon B12M3220S117 is suitable for current sensors up to 12 megapixel with an image format of 1/1.7 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/1.7 inch
Focal Length 3.2 mm
Aperture (f#) 2
MOD 0.3 m
Back Focal Length 6.14
Angle of View (D) 160° / H: 131° / V: 99°
Megapixel (max.) 12 MP
IR Correction Yes
IR Cut Filter No
Optical Distortion -64 %
Weight 27.3 g
Iris fixed
Focus fixed
Chief ray angle 11.14 °
Typ Standard
pdf

Additional Information

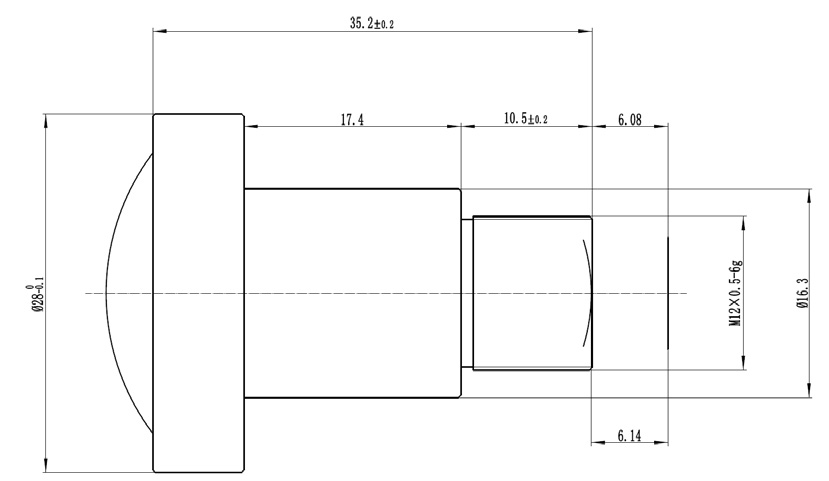

Drawing
