Lensagon TC5M-11-110C

Standard Object Side Telecentric Lens for 2/3″ sensor, Magnification: 1.1x, WD 110mm, F# 15.72, NA 0.035, DOF 359um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 11285 Category:

Product Description

The Object Side Telecentric Lens TC5M-11-110C is suitable for sensors up to 5 megapixel and with an image format of 2/3″.

Magnification 1.1 x
Mount C-Mount *
Working F-Number 15.72
Working Distance (WD) 110 mm
Depth of Field (DOF) 359 μm
Resolution (Object Side) 9.59 μm
Numerical Aperture (NA) 0.035
Image Format (max.) 2/3″
Megapixel (max.) 5 MP
Field of View (FOV) 7,53 mm x 6,57 mm@2/3″
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.03 %
Special Feature Standard

* Other mounts are available on request.

pdf

Additional Information

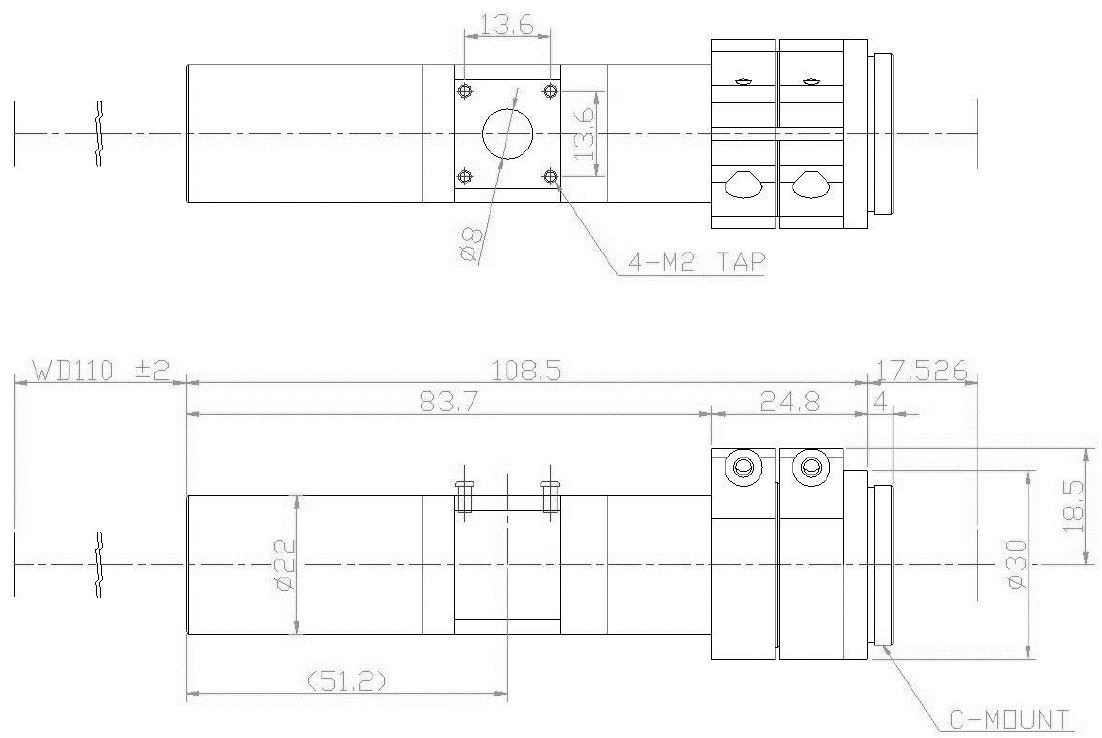

Drawing
