Lensagon TC5M-044-70C

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.44x, WD 70mm, F# 7.3, NA 0.03, DOF 1040um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 11291 Category:

Product Description

The Object Side Telecentric Lens TC5M-044-70C is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.44 x
Mount C-Mount *
Working F-Number 7.3
Working Distance (WD) 70 mm
Depth of Field (DOF) 1.04 mm
Resolution (Object Side) 11.18 μm
Numerical Aperture (NA) 0.03
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Field of View (FOV) 19.26mm x 16.14mm@5M (2/3″ 3.45┬Ám)
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.03 %
Special Feature High Res

* Other mounts are available on request.

pdf

Additional Information

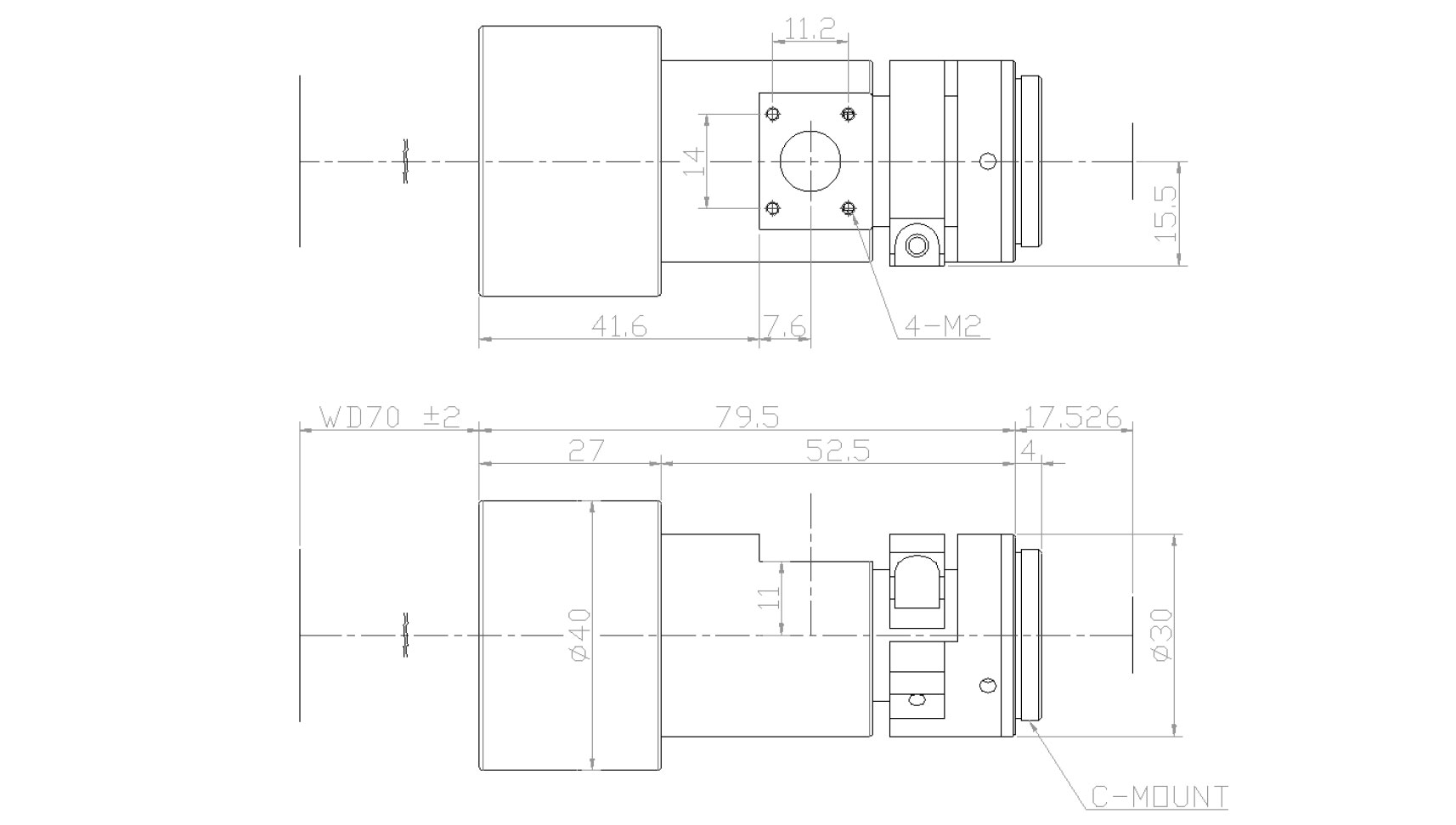

Drawing
