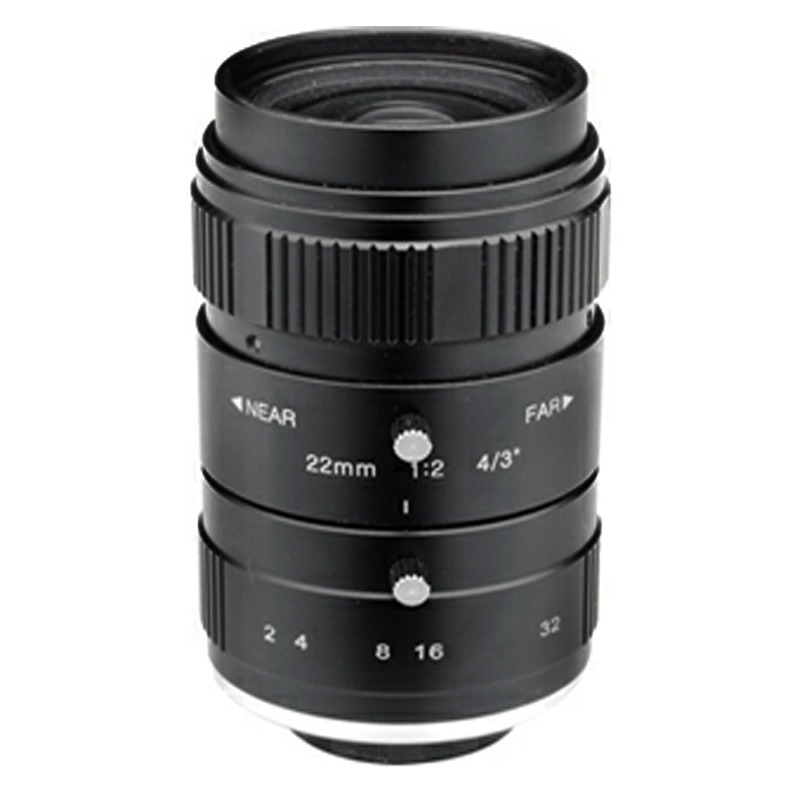

Lensagon C8M2220S43

8 Megapixel C-Mount lens for 4/3 inch sensors, F2, f=22mm

 Compare
SKU: 10254 Category:

Product Description

The C-Mount lens Lensagon C8M2220S43 is suitable for current sensors up to 8 megapixel with an image format of 4/3 inch. It is characterized by a particularly high light intensity.

MountC-Mount
Sensor4/3 inch
Focal Length22 mm
Aperture (f#)2
MOD0.5 m
Back Focal Length20.3
Angle of View (D)55.5°
Megapixel8 MP
IR Cut FilterNo
Optical Distortion1 %
Weight287 g
Irismanual
Focusmanual
TypStandard
pdf

Additional Information

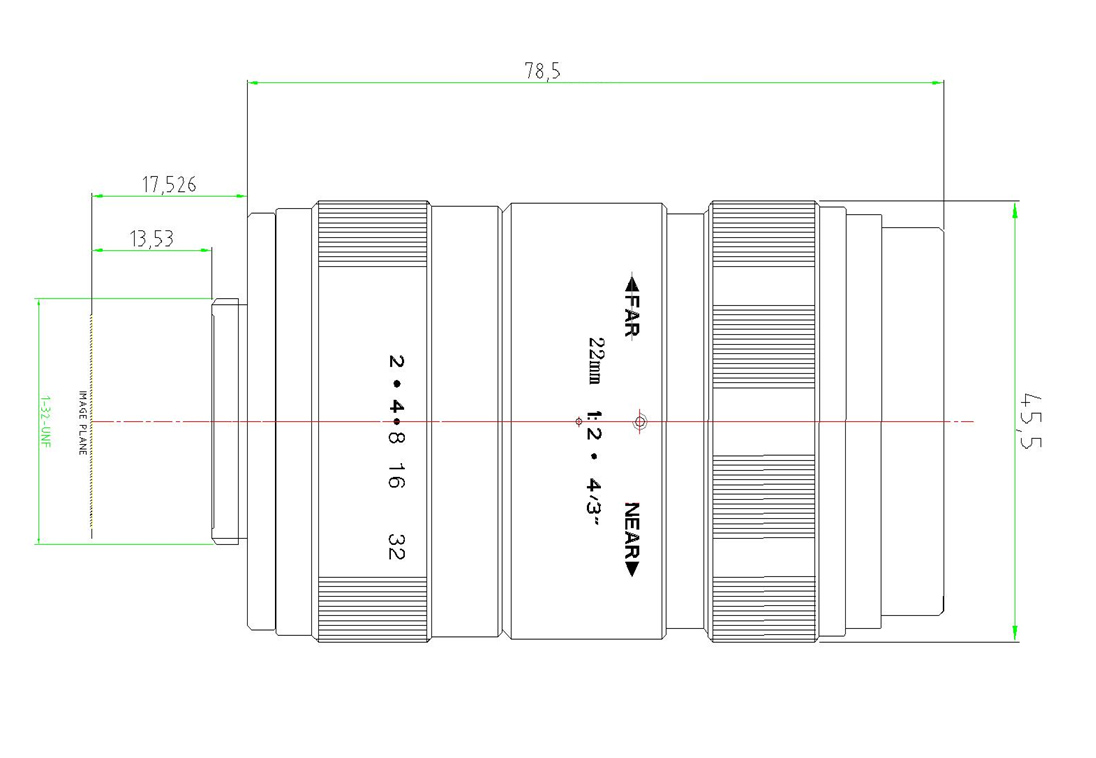

Technical Drawing:

Drawing
