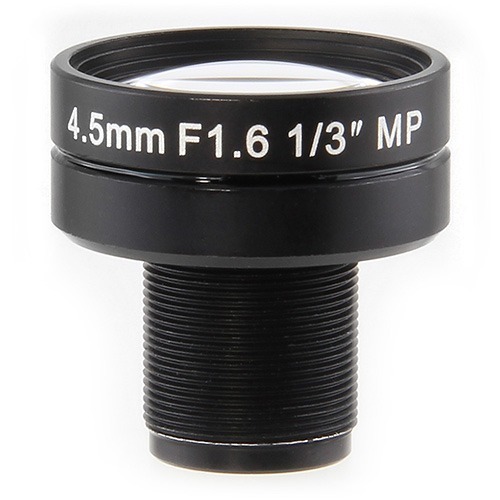

Lensagon BM4516ND
This product has been discontinued.
3 Megapixel S-Mount lens for 1/3 inch sensors, F1.6, f=4.5mm
Product Description
The S-Mount lens Lensagon BM4516ND is suitable for common sensors up to 3 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.
| Mount | S-Mount |
|---|---|
| Sensor | 1/3 inch |
| Focal Length | 4.5 mm |
| Aperture (f#) | 1.6 |
| MOD | 0.2 m |
| Back Focal Length | 6.1 |
| Angle of View (D) | 68° / H: 57° / V: 44° |
| Megapixel (max.) | 3 MP |
| IR Correction | Yes |
| Optical Distortion | 1.9 % |
| Image Circle | 6 mm |
| Weight | 13 g |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 8.9 ° |
| Typ | Standard |
