Lensagon BHR2525

Lensagon BHR2525

0.7 Megapixel S-Mount lens for 1/3 inch sensors, F2.5, f=2.5mm

 Compare
SKU: 09932 Category:

Product Description

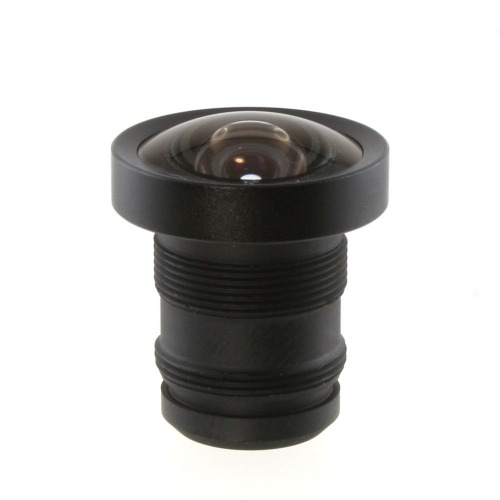

The S-Mount lens Lensagon BHR2525 is suitable for sensors below 1 megapixel with an image format of 1/3 inch.

Mount S-Mount
Sensor 1/3 inch
Focal Length 2.5 mm
Aperture (f#) 2.5
MOD 0.4 m
Back Focal Length 5.04
Angle of View (D) 142.7°
Megapixel 0.7 MP
IR Cut Filter No
Optical Distortion -63 %
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
