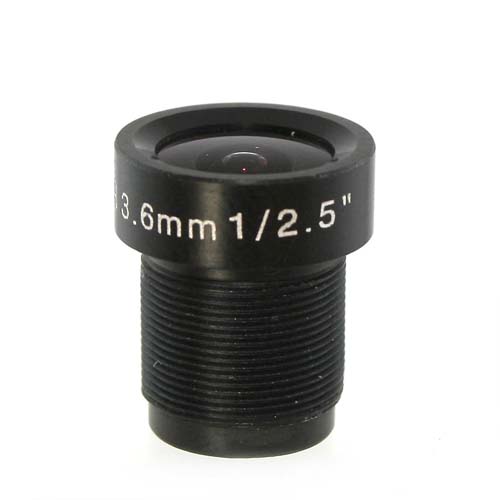

Lensagon B3M3616

Lensagon B3M3616

3 Megapixel S-Mount lens for 1/2.5 inch sensors, F2, f=3.6mm

 Compare
SKU: 09963 Category:

Product Description

The S-Mount lens Lensagon B3M3616 is suitable for common sensors up to 3 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 3.6 mm
Aperture (f#) 2
MOD 0.3 m
Back Focal Length 6
Angle of View (D) 110°
Megapixel 3 MP
IR Correction Yes
Weight 6 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
