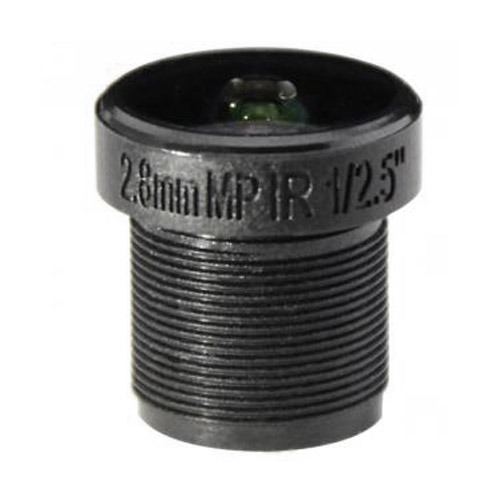

Lensagon B3M2818C

3 Megapixel S-Mount lens for 1/2.5 inch sensors, F2.2, f=2.8mm

 Compare
SKU: 10317 Category:

Product Description

The S-Mount lens Lensagon B3M2818C is suitable for common sensors up to 3 megapixel with an image format of 1/2.5 inch.

MountS-Mount
Sensor1/2.5 inch
Focal Length2.8 mm
Aperture (f#)2.2
MOD0.3 m
Back Focal Length5.9
Angle of View (D)144°
Megapixel3 MP
IR CorrectionNo
IR Cut FilterYes
TV Distortion-19
Image Circle7.2 mm
Weight5 g
Irisfixed
Focusfixed
TypStandard
pdf

Additional Information

Technical Drawing:

Drawing
